Red Hat Enterprise Linux Diagnostics and Troubleshooting

As an organization's IT infrastructure grows, system configuration becomes unmanageable when still performed manually. Manual system administration fails to scale, introduces increased human errors, and might negatively impact system stability and function.

A recommended alternative is to use a configuration management solution. Configuration management tools can greatly enhance operational stability and efficiency, and expedite the deployment of configuration changes to many systems. Because changes are automated and programmatic, the accuracy of those changes is ensured.

System administrators can use Ansible Automation Platform to implement Infrastructure as Code by using a descriptive language to configure systems, instead of using individual, customized tasks. Ansible Automation Platform uses YAML syntax as its playbook language, which makes playbooks simple to read and write.

Playbooks can manage remote system configuration and deployment. Playbooks can also sequence multi-tier rollouts that involve rolling updates; can delegate actions to other hosts; and can interact with multiple host types while running tasks. Playbooks not only manage configurations, but can also orchestrate any ordered process, even when process steps execute and communicate on and between multiple hosts.

Because Ansible Automation Platform is agentless, the only requirement for communication between hosts is to connect via SSH with user accounts with sufficient permissions for the requested tasks.

The following nodes are defined for configuration management processes:

Figure 2.12: Ansible Automation Platform nodes

The control node stores the configuration files:

Ansible Playbooks retrieve or discover variables, called facts, which contain information from the managed system, and that influence some behavior or state change on the system. For example, the discovered IP address from one system can be used as a service configuration value in another system.

Run this example ad hoc command to verify the available variables on server.example.com:

[user@host ~]$ ansible server -m ansible.builtin.setup

Facts are variable data that are stored in memory by default. Ansible Automation Platform uses a memory cache plug-in to maintain facts in memory for the duration of the current playbook run.

The Jinja2 templating system uses the facts as substitution variables in configuration files. Jinja2 templating enables dynamic expressions and access to variables, as in this example:

- name: Template example configuration file
  template:
    source: file.cfg.j2
    dest: {{ remote_install_path }}/file.cfg

The remote_install_path variable defines a file location, which might vary from one system to another.

A playbook can disable fact gathering, with this syntax:

- hosts: servers
  gather_facts: no

RHEL System Roles is a collection of Ansible Roles and modules to manage system configurations across multiple versions of RHEL. Because roles are consistent, they are useful for troubleshooting by creating a known-good configuration for comparison. Roles can be used to test problem cause hypotheses, or to eliminate common configuration problems that cause other service failures. For example, improper time synchronization is a common root cause for network application failure in secure environments.

Red Hat Enterprise Linux 8 includes these roles by default:

To use RHEL System Roles, verify that the rhel-system-roles package, which is available from the AppStream repository, is installed on the controller node:

[root@host ~]# yum install rhel-system-roles

To implement an Ansible Role, include a roles task in an Ansible Playbook:

- hosts: servers
  roles:
     - rhel-system-roles.network
     - rhel-system-roles.timesync

On the control node, Ansible Roles are hosted in the /usr/share/ansible/roles directory, with a directory for each role with all the information and requirements to use the role. Every role includes Markdown and HTML documentation files. Some roles include use case templates and examples, such as for the certificate role:

[user@host ~]# tree /usr/share/ansible/roles/linux-system-roles.certificate
/usr/share/ansible/roles/linux-system-roles.certificate
├── ansible_pytest_extra_requirements.txt
├── custom_requirements.txt
├── defaults
│   └── main.yml
├── examples
│   ├── basic_self_signed.yml
│   ├── dns_ip_and_email.yml
│   ├── key_usage_and_extended_key_usage.yml
│   ├── many_self_signed.yml
│   ├── no_auto_renew.yml
│   ├── not_wait_for_certificate.yml
│   ├── owner_and_group.yml
│   ├── principal.yml
│   ├── subject.yml
│   └── wrong_provider.yml
├── library
│   └── certificate_request.py
├── LICENSE
├── meta
│   └── main.yml
├── module_utils
│   └── certificate_lsr
│       ├── init.py
│       └── providers
│           ├── base.py
│           ├── certmonger.py
│           └── init.py
├── README.html
├── README.md
...output omitted...

The README file describes the role's use cases, parameters, templates, example syntax, and structure. To view the HTML version, use your browser to open the file from the command line:

[user@host ~]# cd /usr/share/ansible/roles
[user@host roles]# firefox linux-system-roles.certificate/README.html

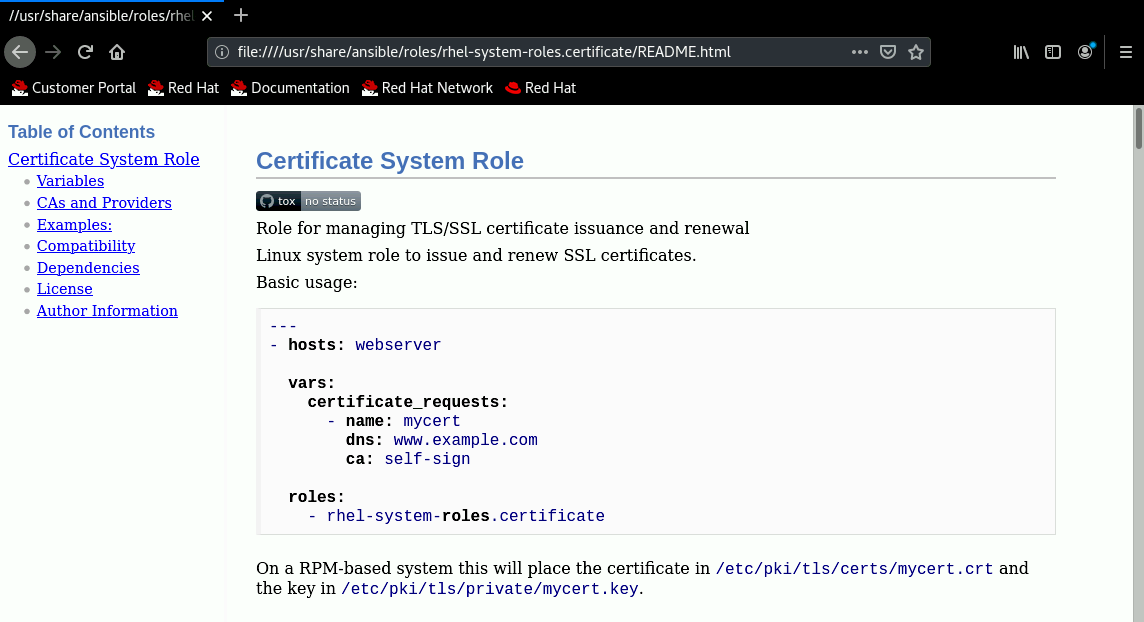

Figure 2.13: RHEL System Role certificates README page
